COMS Micro-Frontend (tef-coms) 2.21.0

Usage

The COMS micro-frontend is provided as a standard web components (v1). In an HTML page, e.g., use the component like this:

<head>
  <!-- load web component -->
  <script type="module" src="https://micro-frontend-coms.telefonica.de/tef-coms/v2/tef-coms.js"></script>
</head>
<body>
  <tef-coms
    lifecycle="webAppRegistrationProcess"
    apiuri="https://apigw.telefonica.de/gateway/coms-core/v2"
    ...
  >
  </tef-coms>
</body>

There can only be ONE <tef-coms> tag on the page at any time! If you place more than one <tef-coms> on the page you will get a load/ERROR event (see below).

For more information, see distribution and browser support below.

For development and test purposes, you can use the test page or the testpage for the group attribute integration.

Changes are tracked in the changelog.

Authentication

This micro-frontend is for customers (selfcare), i.e., the user is a customer.

There are several authentication scenarios:

  1. The user is not authenticated and anonymously creating a new customer order deprecated
    • Provide a register token in attribute registertoken containing a register-id (aka order-id or frontend-order-id)
  2. Same like #1 with API Gateway token deprecated
    • Provide a register token in attribute registertoken containing a register-id (aka order-id or frontend-order-id)
    • Provide an extra API Gateway access token in attribute accesstoken
  3. The user is authenticated by Piranha deprecated
    • Provide a Piranha access token in attribute accesstoken
  4. The user is authenticated by Piranha in conjunction with 4th-Platform deprecated under construction
  5. The user is authenticated by another trusted backend system deprecated
    • Provide a customer token in attribute customertoken
    • Provide an extra API Gateway access token in attribute accesstoken

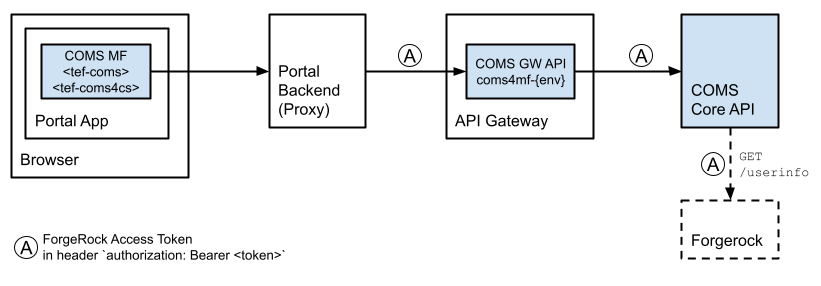

  6. The user is authenticated by ForgeRock (new) new raitt under construction
    • Do not provide any of the aforementioned token attributes. Instead, the new RAITT architecture requires the integrating portal to intercept all REST calls from the micro-frontend to the COMS backend (via API Gateway) in order to add the authorization header appropriately: authorization: Bearer <token>. Please see the image below.
    • Make sure to provide the attributes spId, lcId and/or registerId. flow

Authorization

In conjunction with the new RAITT architecture, the user needs the following scope:

Attributes

Attributes are initializing a web component.

⚠️ This web component is initialized only once using the attributes provided at the time of creation. After initialization, any changes to attributes are ignored and will not trigger updates or re-rendering of the component. To apply new attributes, the component must be recreated.

The following attributes are supported by <tef-coms>.

Attribute names are lower-case (e.g., foobar).

registertoken

deprecated

Required unless accesstoken is provided. If both tokens registertoken and accesstoken are provided, the latter one is used as extra access token for the API Gateway.

In this scenario, there is no authenticated user, i.e., the user is anonymously creating a new customer order. However, some values have to be passed to <tef-coms> in a forgery-proof manner establishing a secure logical backend session with the integrating portal.

A register token is a JWT particularly containing spId and registerId (aka Frontend-Order-Id), e.g.:

{
  "iss": "foo.telefonica.de",
  "sub": "REG-8168746873-FOO",
  "iat": 1516239022,
  "exp": 1516257625,
  "aud": "coms.telefonica.de",
  "spId": "SP301",
  "registerId": "0815"
}

COMS decodes the JWT, validates its content, and validates its signature with a shared secret (iss-specific, HMACSHA256) which has to be configured with the COMS API.

There are the following constraints:

accesstoken

deprecated

Required unless registertoken is provided.

In this scenario, the user is logged in and authenticated by Piranha or ForgeRock. The access token from Piranha or ForgeRock (OAuth 2.0, Open ID Connect) is simply passed to <tef-coms>. The integrating portal is responsible for obtaining the access token up-front.

This only works in conjunction with the API Gateway which is responsible for validating and resolving the access token with Piranha or ForgeRock on behalf of the COMS backend. Please make sure you use an apiuri (see below) that connects to the COMS API via the API Gateway.

For development and testing purposes ⚠️, however, it is possible to directly connect to the COMS API (i.e., not via API Gateway) with using a Fake Token. It’s a JWT with the following properties. It must be signed with the secret ach-wie-gut-dass-niemand-weiss-9 (HMACSHA256).

{
  "iss": "http://piranha.fake.de", // or "forgerock.fake"
  "sub": "...",
  "aud": "coms.telefonica.de",
  "spId": "...",
  "lcId": "...",
  "username": "..."
}

customertoken

deprecated

Required unless registertoken or accesstoken is provided.

Please note that customertoken additionally requires accesstoken to be set with a specific access token of the API Gateway.

The customer token is sent to the COMS backend for authentication & authorization. It is a JSON Web Tokens (JWT) which is signed (HMAC SHA256, issuer-specific secret) and encrypted (AES-265/CBC/PKCS5Padding, shared secret).

The following claims are expected in the JWT payload:

accesstoken4p

deprecated under construction

The access token for 4th platform. Optional if apiuri4p is provided.

spid

new raitt

The service provider id. Applicable only in conjunction with the new RAITT architecture (ForgeRock). Required.

lcid

new raitt

The local customer id. The format depends on the according CRM system or IT stack. Applicable only in conjunction with the new RAITT architecture (ForgeRock). Optional.

registerid

new raitt

The register id (aka front-end order id). Applicable only in conjunction with the new RAITT architecture (ForgeRock). Optional.

newcustomer

new raitt

Optional. Applicable only in conjunction with the new RAITT architecture (ForgeRock and Salesforce).

If true, the micro-frontend will assume a new customer registration for a new customer as created by Salesforce just seconds or minutes ago.

Else, the micro-frontend will assume selfcare for an existing customer.

lifecycle

Required. Specifying the customer lifecycle, e.g., “webAppRegistrationProcess” or “existingCustomerInlifeMaintenance”.

apiuri

Required. The base URI of the COMS API. Something like https://$host.

The intended way to connect to the COMS API is via API Gateway. Depending on the environment, please use one of the following GW APIs:

For development or testing purposes, however, you can also directly connect to the COMS API w/o API Gateway.

apiuri4p

Optional. Only for integrating with Novum/4th-platform there is an additional parameter apiuri4p which is used for certain REST requests to the 4th platform.

occluri and stylecontext

deprecated

Both parameters are provided for integration with the OCCL (Telefónica’s omni-channel component library). In order to use the new Telefónica ONE Design System instead, please see below.

occluri is required. The base URL to the OCCL including brand id. Something like https://$host/$brandid.

stylecontext is optional. It is a list of style-context identifiers, separated by blanks. Each style-context identifier is mapped to a class with prefix context- in the top-level div container inside <tef-coms>. This top-level div container is also rendered when stylecontext is omitted. Available style-context identifiers are specified by the OCCL.

For example, <tef-coms> is simply rendering this:

<tef-coms
  occluri="https://library.telefonica.de/1"
  stylecontext="foo bar"
>
  #shadow-root
  <link rel="stylesheet" href="https://library.telefonica.de/1/v3/components/theme-wc/bundle.css">
  <div class="context-foo context-bar">
    <!-- and all the rest -->
  </div>
</tef-coms>

In addition, all required OCCL scripts are loaded dynamically by the micro-frontend.

mode

Optional. Its value can be, e.g.,:

For "multiedit" mode make sure you choose a lifecycle that has a view lifecycle configured. For "merge" mode make sure to choose a lifecycle that has page details for merge configured, e.g., "inlifeEventMergeAccounts".

vonr

Optional. VO number to be set into some calls to the COMS API.

channel

Optional. The contact channel, e.g., Web. Defaults to Web. Available values: Web, AEMUnsubscribe, App, Shop, ShopDPS, SSFE, Hotline, Telesales, E-Mail, Kampagne, M2M, Unknown, Merge. In mode "merge" the channel will be automatically set to Merge.

traceid

Optional. A trace ID to pass into all relevant requests to the COMS API. It is set to custom header tef-coms-clienttraceid for internal logging purpose. If traceid is not set, it will be generated.

references

Optional. A list of document references as JSON-formatted string, e.g., [{"type":"offer","source":"Ad_App_o2","id":"20004711"}].

comment

Optional. An optional field for internal purposes.

usertype

Optional. The usertype of the customer service agent. Used for logging purposes.

group

Optional. A comma-separated list of page group names to display in the given order.

This will cause the microfrontend to display those groups only. All consent values (granted/revoked) will be remembered in the browser tab’s sessionStorage.

⚠️ The integrator must make sure to call save() when all groups have been collected to actually save the consents to COMS.

The page group names can be supplied by the COMS team and depend on the concrete implementation of the user workflow the integrator wants to achieve. Please talk to the COMS team. If the retrieved config does not have any of the groups mentioned in the group attribute, a consents/EMPTY event will be triggered. Please also see “Usage and meaning of the “group” attribute” below!

sessionkey

Optional. Mandatory if using multiple microfrontend instances.

The sessionkey helps to keep consent data consistent when displaying the same consent data in multiple instances of the same component in one session/flow.

Important: When working with multiple instances of tef-coms in a single session/flow, you must always use the same sessionkey value.

Think of the sessionkey as a label that links different consent displays together. When multiple consent displays share the same sessionkey they will all show identical information and stay in sync with each other.

How to use it:

Example: If you’re showing customer consent information in two different sections for the same session/use case, both sections must use the identical sessionkey to ensure they display the same consent data and stay consistent.

Methods and Properties

Web components can be referenced as objects and thus may provide “custom element methods”. Similarly, their classes may provide methods or properties.

save

A <tef-coms> element provides a save element method for saving the consents to the COMS API.

const el = document.querySelector('#consents');
await el.save(); // promise

⚠️ If your portal app loads a new page after clicking a submit button and calling the save method, please make sure to wait for the promise to resolve (or reject) before the document unloads. Otherwise, the browser might cancel the save request immediately again (which is a fetch call to the COMS API) before it was actually executed.

removeConsentGroup

This static method on the custom element can be executed when using the group attribute. It will remove all consents of the given group from the list of rendered consents.

This will cause the COMS microfrontend to NOT save those consents when save() is called or a save button is pressed.

Use this if you conditionally render some <tef-coms group="some-group" ...> and want to remove that group from the cosnents to be saved.

Usage:

window.customElements.get("tef-coms").removeConsentGroup("some-group");

Telefónica ONE Design System

new raitt

Telefónica ONE is the new easy-to-use and publicly accessible living design platform for all Telefónica products of the RAITT program. It is the successor of the OCCL design library.

For the time being, <tef-coms> will support both design systems alternatively. The OCCL, however, is now deprecated.

For using Telefónica ONE, simply do not provide the HTML attribute occluri. The integrating portal is responsible for loading all necessary Telefónica ONE resources. They must be fully loaded before <tef-coms> is initialized in the page.

Events

<tef-coms> issues CustomEvents of type tef-coms. The event’s srcElement and target is the <tef-coms> DOM element (re-targeting all events that come from further down). All details are further specified in the event’s detail property.

<tef-coms> does not provide any visual error feedback to the front-end user. This is dedicated to the integrating portal based on error-level events issed by <tef-coms>.

Name Level Description
config/INIT info The micro-frontend is initializing. Technically, this is immediately after the custom element has been inserted into the DOM and its connectedCallback has been called by the browser. This event can be used for performance measurements.
auth/VALIDATE info Token validation was successful.
auth/ERROR error Token validation failed.
consents/LOAD info Loading consents was successful. This event is also issued when the consents are loaded from session storage (which in some scenarios they are).
consents/SAVE info Saving consents was successful. Remark: In case MFE is displaying buttons best practise is to reload the MFE if this event is received to disable the save-button again
consents/MERGECHANGE info User have clicked on accept merge accounts checkbox. Current state is saved in property isChecked
consents/ERROR error Loading or saving consents or customer attributes failed.
consents/EMPTY info There are no consents to be rendered. The micro-frontend will not visually render anything.
consents/CHANGE info The user changed a consent. This event does not provide any further details which consents where changed. It is issued at every change, i.e., multiple times. This event is indicating that consents were changed, e.g., in order to enable an external save button.
action/CHANGE info The user started editing consents in multi-edit mode.
action/CANCEL info The user clicked the cancel button either in multi-edit, button or cattr mode.
action/SAVE info The user clicked the save button either in multi-edit mode or in button mode or the save method was called.
action/CANCEL_MICROFRONTEND info The user clicked the back (“Zurück”) button when in viewing mode. The microfrontend should be closed by the integrating party if this event occurs.
load/READY info The micro-frontend has successfully loaded all required resources (including OCCL). This is indicating that a loading spinner (if displayed by the integrating portal) shall now be removed. It is guaranteed that either load/READY or load/ERROR is issued – exactly once.
load/ERROR error The micro-frontend has failed. This might be due to a misconfiguration, a failure to load a required resource (including OCCL/dsOne) or usage of <tef-coms> more than once on the page. It will not visually render anything. This is indicating that a loading spinner (if displayed by the integrating portal) shall now be removed. It is guaranteed that either load/READY or load/ERROR is issued – exactly once.

In addition to the events listed above, there are also tracking events issued. See section Tracking below.

For listening to all events issued by <tef-coms>, place something like this into your page:

<script>
   document.addEventListener('tef-coms', function(e) { console.log(e); });
</script>

For debugging purposes you can switch on the event logs with the help of a variable in the local session storage. To do this, enter the following in the browser console:

localStorage.setItem('tef-coms-debug-mode', 'true');

Below are a couple of sample events. Please note that all properties message and statusText are not formally specified, i.e., they will be subject to change and/or are platform-specific. ⚠️

CustomEvent {
  type: "tef-coms",
  detail: {
    name: "consents/LOAD",
    level: "info",
    message: "consents loaded successfully"
  }
}
CustomEvent {
  type: "tef-coms",
  detail: {
    name: "consents/ERROR",
    level: "error",
    message: "loading or saving consents failed",
    error: {
      name: "Error",
      statusCode: 400,
      statusText: "Bad Request",
      message: "\"lifecycle\" must be one of [webAppRegistrationProcess, mobileAppsInitialLogin, ...]"
    }
  }
}
CustomEvent {
  type: "tef-coms",
  detail: {
    name: "auth/ERROR",
    level: "error",
    message: "token validation failed",
    error: {
      name: "Error",
      statusCode: 401,
      statusText: "Unauthorized",
      message: "user not found"
    }
  }
}
CustomEvent {
  type: "tef-coms",
  detail: {
    name: "auth/ERROR",
    level: "error",
    message: "token validation failed",
    error: {
      name: "TypeError",
      // network error does not have status code
      message: "Failed to fetch"
    }
  }
}

Logging

<tef-coms> does some basic logging to its backend’s POST /service/mfe/log endpoint.

Tracking

<tef-coms> also issues CustomEvents for tracking purposes. They are of type tef-coms with the name TRACKING. There is a data property with event-specific information. It contains a property event indicating the type of event and further event-specific properties. For example:

CustomEvent {
  type: "tef-coms",
  detail: {
    name: "TRACKING",
    level: "info",
    data: {
      event: "changePermissions",
      ...
    },
  }
}

Portals need to catch these events and push them into their GTM dataLayer. Something like this:

document.addEventListener('tef-coms', function(e) {
  if (e.detail.name === 'TRACKING') {
    dataLayer.push(e.detail.data);
  }
});

There are the following events submitted:

Clicking a checkbox does not issue a TRACKING event.

Distribution

The following bundles are available:

As of Apr 2023, ES5 is no longer supported. ⚠️ The last version supporting ES5 is 2.11.

The distribution looks like this:

.
├── tef-coms.js
├── tef-coms.js.map
├── typings.d.ts
├── index.html # this page
├── test.html # a test page
└── browsercheck.js

Browser Support

The key technology used here is standard web components (v1). It is guaranteed to work in the latest two versions of all major browsers: Chrome, Firefox, Edge, Safari, Safari/iOS.

As of Feb 2021, IE is no longer supported. ⚠️

As a general rule, only browsers with native support for Web Components (custom elements and es6 modules) are supported. Consequently, it is no longer recommended nor required to load polyfills for Web Components.

We recommend the following approach:

<head>
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width, minimum-scale=1, initial-scale=1, user-scalable=yes">
  <meta http-equiv="X-UA-Compatible" content="IE=Edge" />
  <!-- browser detection -->
  <script src="browsercheck.js"></script>
  <script>
    if (window.BrowserCheck.blacklisted()) {
      document.location = 'error.html'; // redirect
    }
  </script>
  <!-- load coms micro-frontend -->
  <script type="module" src="tef-coms.js"></script>

It uses a little helper script browsercheck.js that checks for blacklisted browsers, i.e., whether Web Components are natively supported.

Please make sure to load the micro-frontend as a module: type="module" ⚠️

Initial Load & Performance

Before the micro-frontend is able to render something visible on the screen, a couple of resources have to be loaded under the hood. All of them are required. These requests are submitted as early and as parallel as possible, of course.

The event config/INIT is indicating that the micro-frontend is starting up (technically, this is immediately after the custom element has been inserted into the DOM and its connectedCallback has been called by the browser). The event load/READY is indicating that all required resources were loaded and the micro-frontend is now rendering something visual. If any of the resources cannot be loaded (for whatever reason), the event load/ERROR is issued instead – without rendering anything visual.

If you are looking for performance measurements, these might make sense:

Versioning

<tef-coms> supports Semantic Versioning.

Global Resources

All global resources used by <tef-coms> are pre-fixed. In particular:

Single customer attribute edit mode

coms-mfe-single-customer-attribute-mode

It is possible to display and edit a single customer attribute. This can be used for campaigning consents for a single customer attribute.

Only not granted and configured customer attribute items will be editable. Items that are already granted will not be editable.

Load the javascript as usual (see above) and use the following tef-coms mode attribute:

<tef-coms ... mode="cattr:CATTRID:CATTRITEMID1,CATTRITEMID2" ... ></tef-coms>

All values are colon-separated and consist of the customer attribute id and (optionally) a comma separated list of customer attribute items that should be editable if they are not already granted.

cattr : Static, triggers the single customer attribute edit mode.

CATTRID: The id of a single customer attribute like “product”.

CATTRITEMID1,..: A list of customer attribute item ids of the CATTRID specified before. If left empty all customer attribute items will be displayed for editing.

The usual events will be triggered but with a different context:

Event Context
action/SAVE The customer attribute items have been saved and the includign page can react eg. with a Thnak you note.
action/CANCEL The user clicked the CANCEL button. The integrating page should react accordingly.
consents/ERROR The customer attribute with the id CATTRID does not exist.
No content will be rendered and the integrating portal should display a message.
consents/EMPTY The user doesn’t see any editable customer attribute items.
No content will be rendered and the integrating portal should display a message.

Usage and meaning of the “group” attribute

Using the group attribute fundamentally changes the way the microfrontend works.

Without group the microfrontend will display all consent group at once, enabling the customer to set all his consents on a single page.

With group only the mentioned consent group(s) will be rendered and only those can then be switched by the customer. The consent status (granted / revoked) will be kept in memory until the save() method is called on the microfrontend tag. This will then save all consents the customer has configured in the current browser session to COMS database.

It is important to only have one <tef-coms> tag in the DOM at any time. If your app needs to render multiple tef-coms tags on one page you need to use the sessionkey attribute !

Example 1

The user workflow consists of an IBAN entry page and a POSTAL ADDRESS page connected by a step-by-step interface using a real page reload and not a SPA.

You can use group to display a IBAN specific consent (eg. “Allow us to use your IBAN to determine if you are connected to other customers”) on the IBAN step and use another microfrontend invocation with a different group to display POSTAL ADDRESS relevant consents (eg. “We use your address to send you promotions”).

Both groups will be rendered in the appropriate places determined by the integrator and every consent click the customer does will be tracked in memory. After all consents have been displayed the integrator must make sure to call the save() method on the microfrontend tag to actually save all collected consents (IBAN + POSTAL ADDRESS) to COMS.

Example 2

The user workflow consists of an IBAN entry page and a POSTAL ADDRESS page connected by a step-by-step interface that is driven by Vue/React as a single page app without real reload.

You can use group to display a IBAN or POSTAL ADDRESS specific consent as described in Example 1 but now you must make sure to always use the same sessionkey attribute on all tags on the page.

If the customer can repeat the same process in your app multiple times (eg. for multipe SIM cards) make sure to set the sessionkey to a unique value every time the process starts anew (eg. a new SIM card is entered).
